Magswitch 90 Degree Angle 400 – 8100454

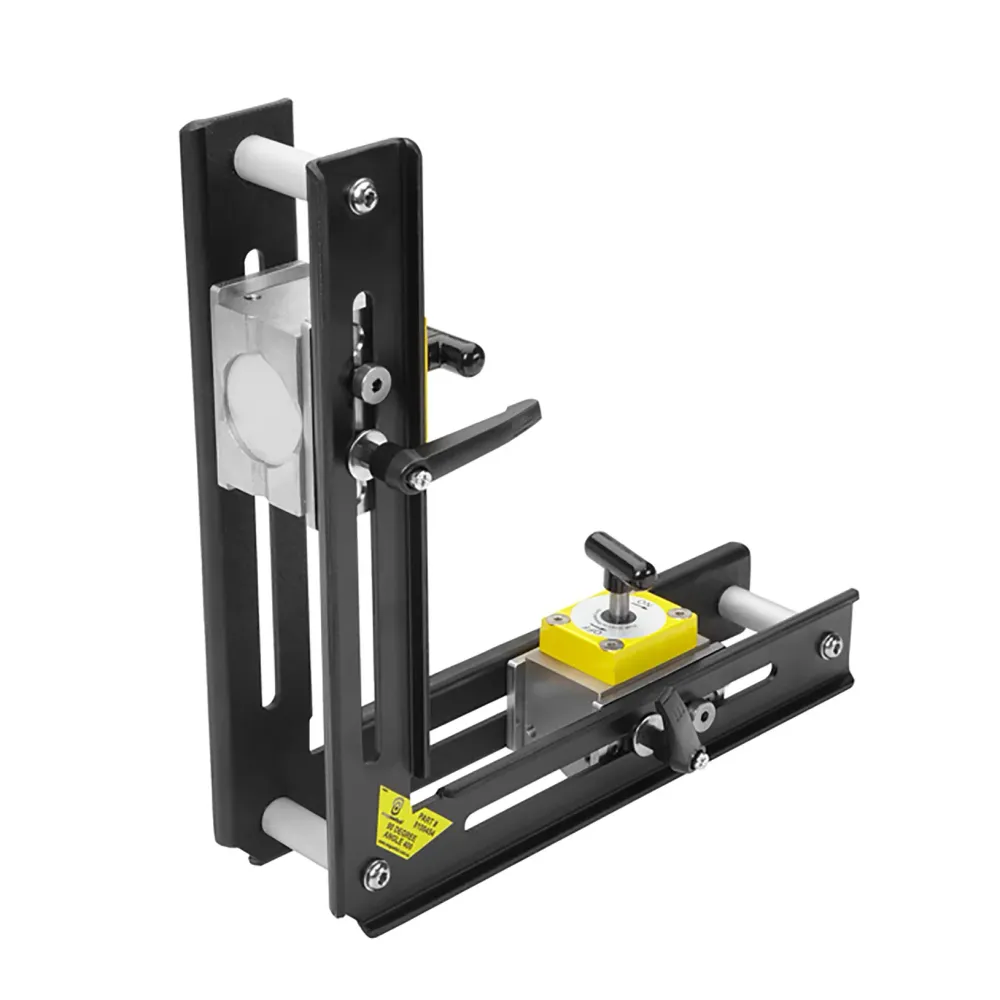

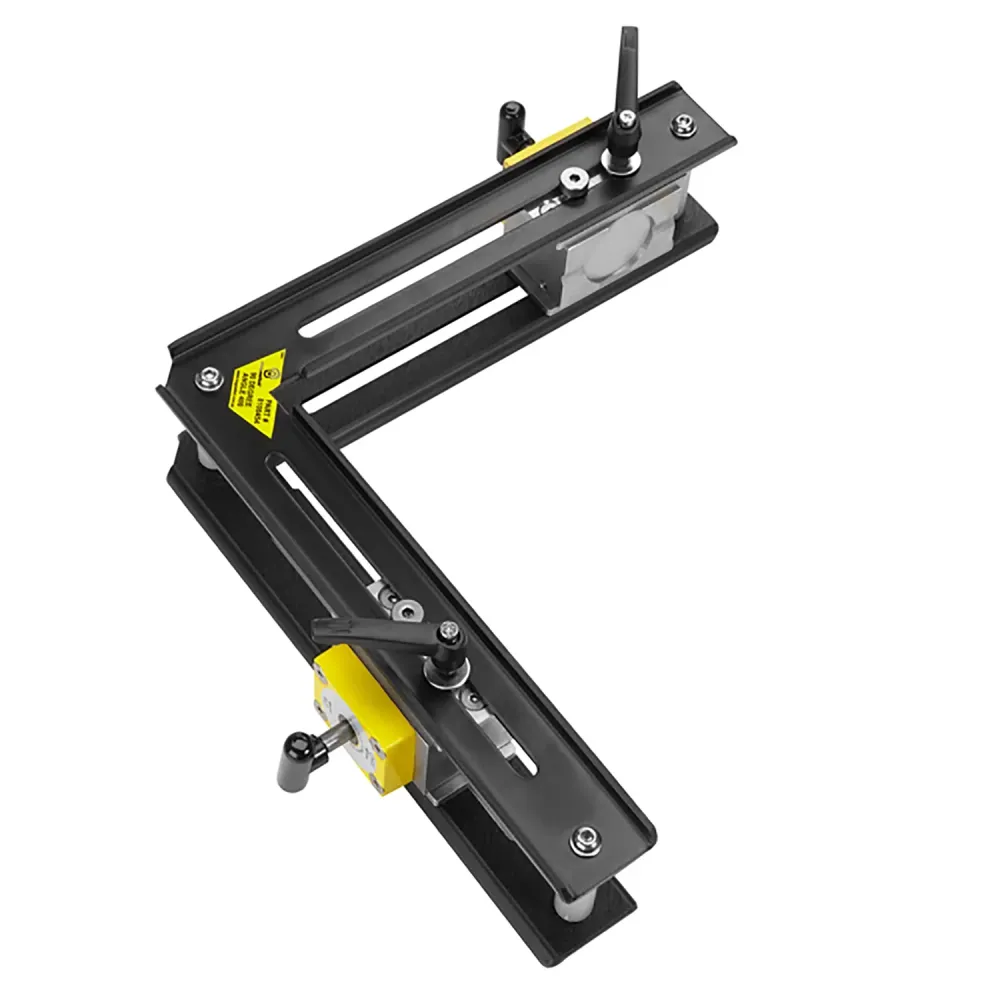

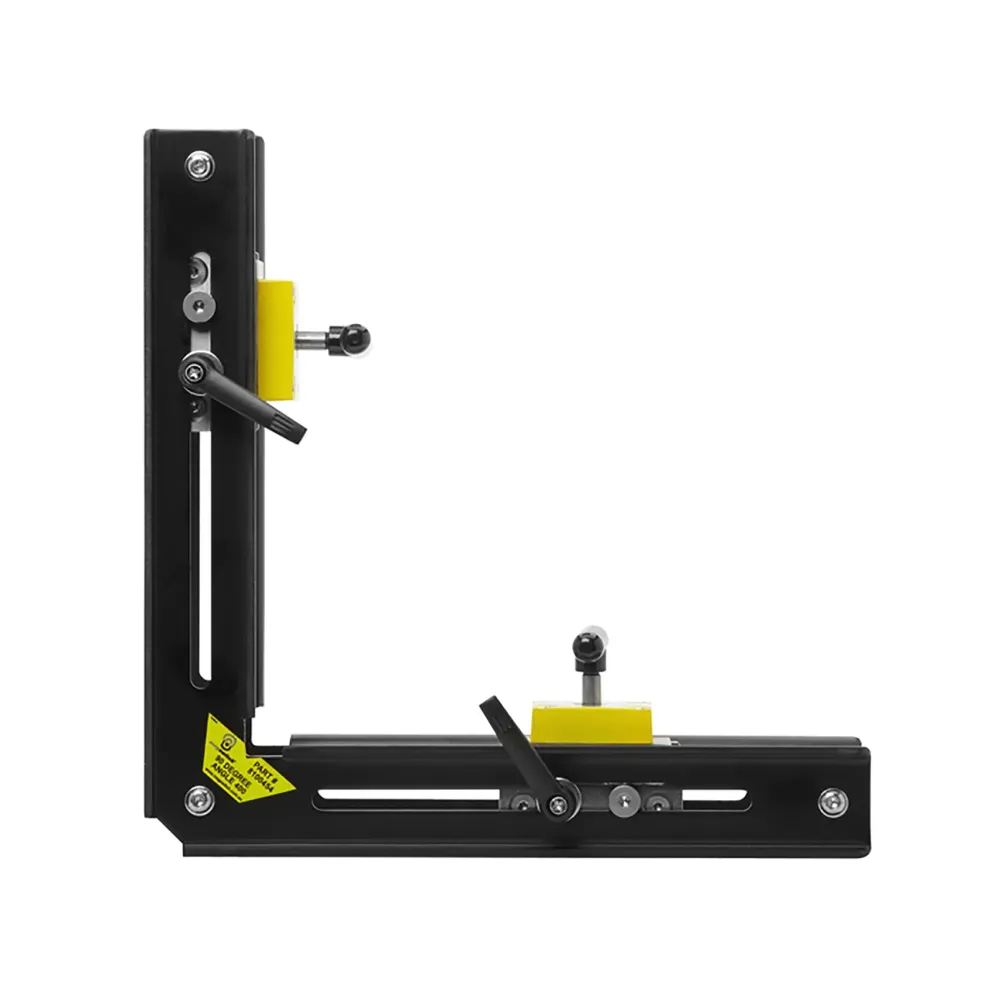

Deliver superior accuracy with our fixed 90-degree welding angle. Adjust the MagSquares by sliding them up or down on each axis for unmatched versatility. Switch on and off 400 pounds of magnetic holding force by rotating the black knobs. Comes ready to use with two MagSquares, as pictured.

Features:

• Magnetic field turns completely on and off mechanically
• Does not use an electrical power source.
• Switch off to wipe away metal shavings and the magnets stay clean.
• Holds to flat and round surfaces of steel.
• Lightweight with incredible strength.
• Precision positioning.
• MagSquares can be reversed on each axis.
• Magswitch Part No. 8100454

Specifications:

• Maximum Breakaway Force: 400 lbs / 181 kg (on 1/4 » steel)
• Maximum Shear: 20 lbs / 9 kg
• Full Saturation Thickness: 1/4 in / 6.35 mm
• Product Weight: 6.2 lbs / 2.8 kg
• Overall Dimensions: 11.3 x 3.5 x 11.3 in / 287 x 90 x 287 mm
• Magnetic Pole Footprint: 64 mm x 41.26 mm
